ILA-2 : Detection and Location done by TDR
Detect and accurately locate leaks and insulation faults using advanced Time Domain Reflectometry (TDR) technology. The ILA-2 is engineered to provide fast, precise, and non-destructive diagnostics for pre-insulated pipeline systems. By analysing reflected signal patterns, it accurately identifies the location of leaks, moisture ingress, cable breaks, and insulation defects without unnecessary excavation. This advanced technology enables maintenance teams to diagnose issues quickly, reduce downtime, optimise repair planning, minimize maintenance costs, and improve the overall reliability and efficiency of district heating and cooling networks.
ILA-2 Key Features
– Advanced Time Domain Reflectometry (TDR) technology for rapid fault detection and precise fault location on pulse cable networks.
– Integrated industrial computer with a high-resolution touchscreen display for simple operation and local diagnostics.
– Monitors and manages up to four independent measurement circuits from a single unit.
– Secure remote access for configuration, diagnostics, firmware updates, and data retrieval.
– Multiple communication options including GSM, Ethernet (LAN), and relay interfaces for flexible connectivity.
– Seamless integration with monitoring and control platforms such as RATMON, SCADA, BMS, GIS, FUSION, and other third-party systems.
– Compact all-in-one design with all hardware housed within a single robust enclosure for straightforward installation.
Dual power capability with automatic operation from mains supply and battery backup to ensure continuous monitoring during power interruptions.

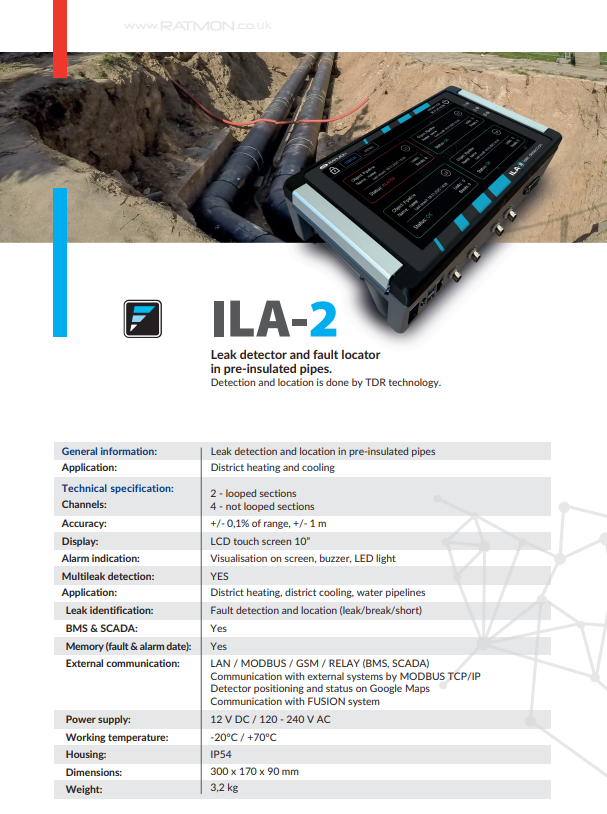

Download ILA-2 Brochure
Please click the button below to download a PDF copy of our latest RATMON ILA-2 Brochure.
If you have any further queries or would like to discuss your requirements, please contact our technical team.
Download the RATMON ILA-2 Brochure
